Complete 3 Point Systems - AL 9G+AF 12G Combination 84,000 lb Capacity

Image 1
  • Image 1
Price:
$2,437.00
SKU:
CS AL 9G+AF 12G
Brand:
Amital USA
Condition:
New
Weight:
262.00 LBS
Availability:
Immediate from Inventory
Shipping:
Calculated at checkout
*Delivery Date:
Quantity:

Product Description

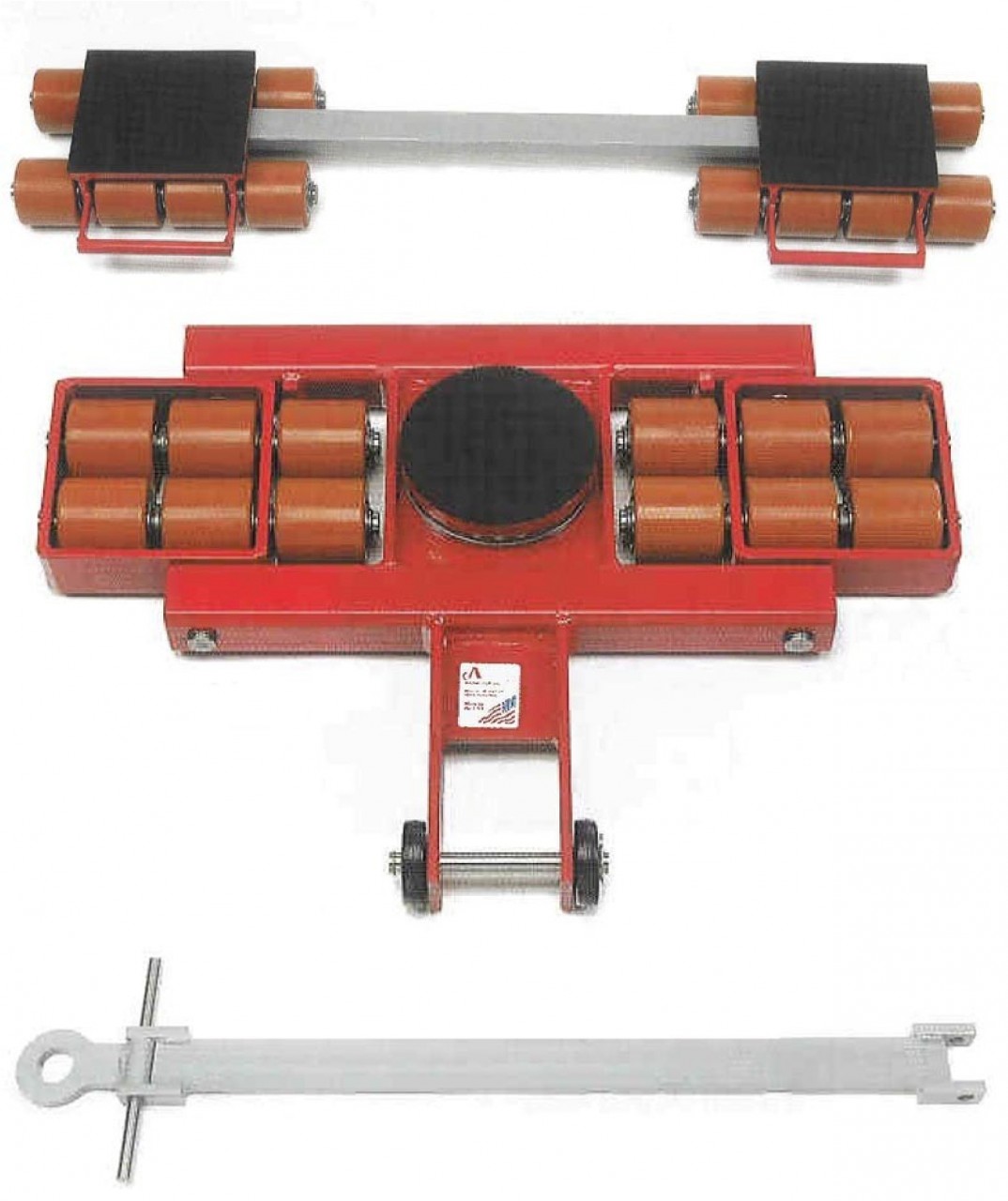

Front Steerable Rollers with Handle Bar
Combined with
Rear Stationary Rollers with Adjustable Width Connecting Bar
Combination Systems Include All Components Standard for Skate and Roller systems.
A Rubber Cassette Pad with A Solid Steel Base on
"G" Series Non-Marking Low Profile Wheels.
Design for use on epoxied, tiled, painted, concrete, wooden and otherwise delicate floors.

Shipping Weight and Container Size varies, for Items shipping via freight
The cost is determined by Shipping weight and Location

Technical Data AL 9G
Load Capacity 36,000 lbs
Number of Wheels 12
Wheel Dimensions Ø x L 3.3" x 3.3"
Height from floor 4.5"
Revolving Crown Ø 6.7"
Dimensions L x W 31.5" x 23"
Handlebar with Pulling Hook L 43"
Weight 158 lbs

















Technical Data AF 12G
Load Capacity 48,000 lbs
Number of Wheels 16
Wheel Dimensions Ø x L 3.3" x 3.3"
Height from floor 4.5"
Support Surface per
Cassette L x W		 8.5" x 8"
Cassette Dimensions L x W 12.2" x 15.3"
Adjustable Connecting Bar L 40"
Cassette Adjustable From - To 15.7" x 36.6"
Weight 104 lbs

Warranty Information

All Claims for missing visible defected parts must be made within seven (7) days of receipt of shipment, and in writing.
One Year from the date of Delivery with Exception of normal wear and tear of the casters, provided that the Equipment has not been overloaded.
